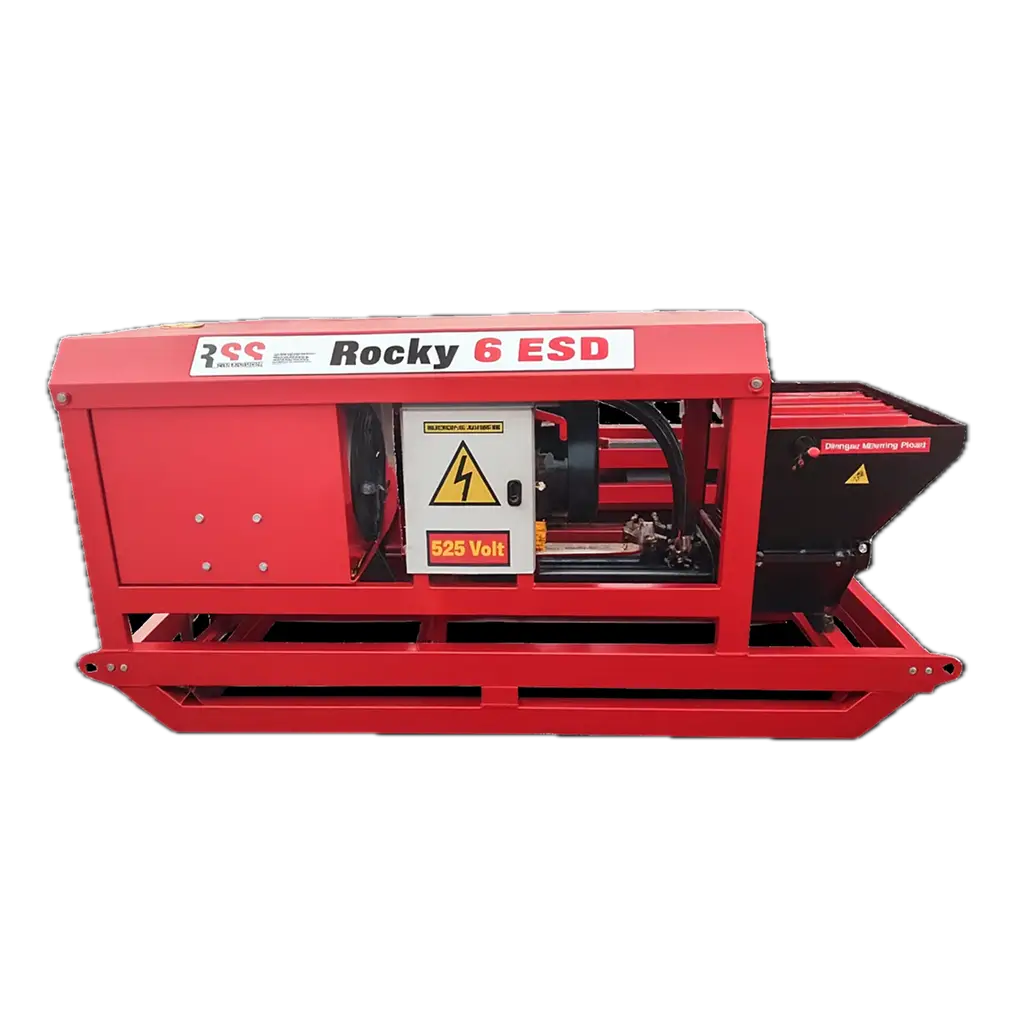

Wet Shotcrete Machine – Rocky 6 for Underground Shotcrete Spraying
The Rocky 6 delivers high volume shotcrete performance of up to to 6 m³/h at 50 bar – with a powerful 15 kW motor, rugged construction, and modular mounting options ideal for mining, tunneling, and heavy civil works
When your operation demands reliability, output, and precision in the harshest conditions, the Rocky 6.0 is the clear choice. Engineered for heavy-duty shotcrete applications, it delivers consistent high-volume performance, precise additive control, and long service life—all in a compact, modular format. Whether mounted on skids, trailers, or rail cars, it adapts to your site layout with ease, making it ideal for deep mining, tunneling, and large-scale civil works
Features & Benefits
High Output & Pressure Variable flow up to 6 m³/h and 50 bar pressure handles demanding applications with ease.
Industrial-Grade Motor 15 kW motor ensures reliable continuous operation, even under tough underground conditions.
Additive System Ready Compatible with optional 120 l/hour dosing system for better shotcrete quality and adhesion.
Built Tough With an 820 kg dry weight and durable components, it’s designed for long-term, heavy-use environments.
Compact & Adaptable Measuring just 2,050 × 750 × 1,050 mm, it fits in tight spaces and mounts on skids, trailers, or rail cars.
Safe, Low-Voltage Control 24 VDC control circuit offers safe and responsive handling.
Maintenance-Friendly 120-litre oil capacity with mineral hydraulic oil allows for extended run time and smooth operation
