Small but Mighty
Perfectly sized for niche applications where precision matters more than volume—ideal for tight or restricted operating spaces.
Portable & Adaptable
Weighing just 450 kg, it mounts easily on skids, trailers, or rail cars for seamless mobility across job sites.
Electric Efficiency
Powered by a 5.5 kW motor with 380 V, 525 V, or 1000 V options—plug-and-play simplicity with smooth, reliable performance.
Robust Hydraulics
Delivers up to 50 bar output pressure at 2.5 m³/hr via a powerful 140 bar hydraulic system—built for consistent, high-performance delivery.

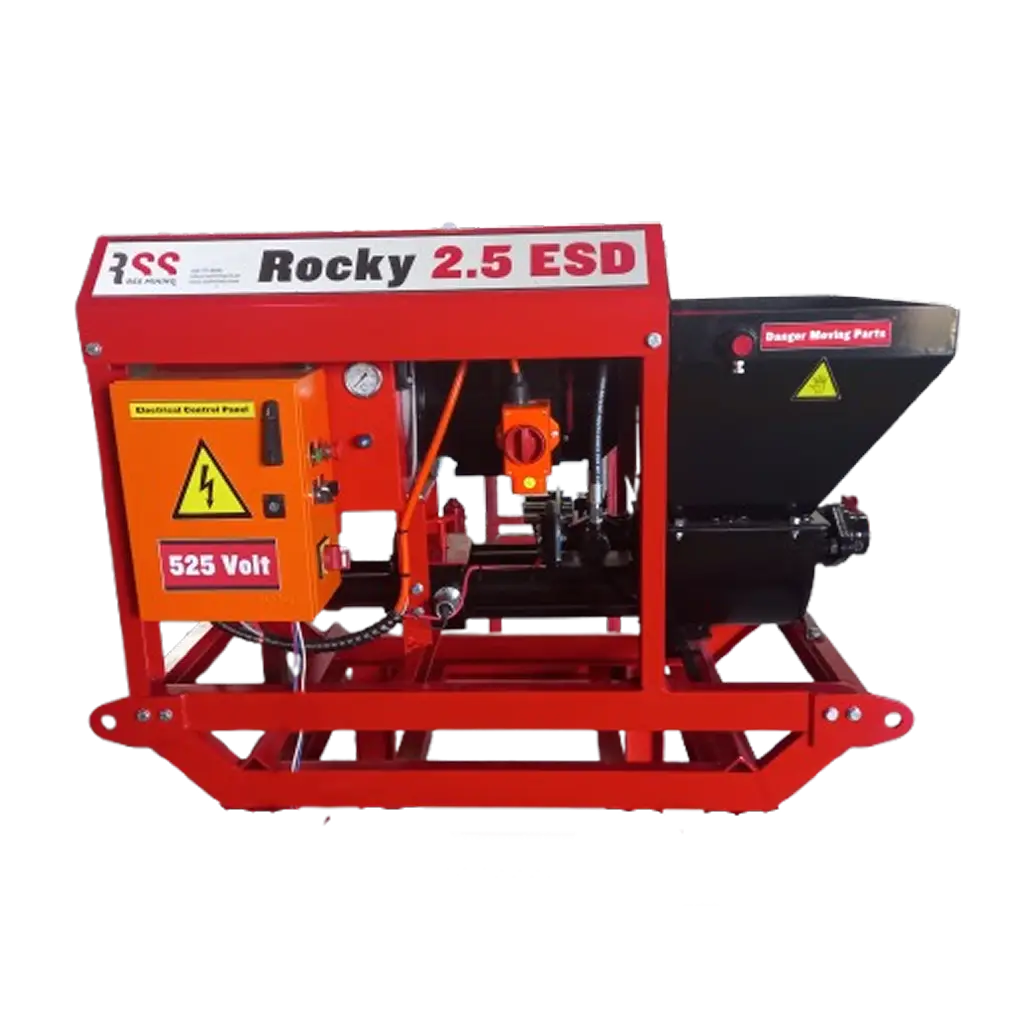

Electric-Driven Hydraulic Pump
Delivers clean, cost-effective operation with minimal maintenance requirements.
Compact Footprint
Measuring just 1410 mm × 750 mm × 1020 mm—ideal for tight underground environments.
Modular Mounting
Mounts on skids, trailers, or rail carriages for maximum onsite flexibility.
Accessory-Ready
Supports optional accelerator tank and dosing system for improved mix quality and control.
User-Friendly Controls
24 V DC control panel offers safe, intuitive, and responsive operation.
| Pump Type | Hydraulic Wet Shotcrete/Concrete |
| Output Capacity | 2.5 m3/h |
| Hydraulic Pressure | 140 bar preset |
| Delivery Pressure | 50 bar |
| Dosing Capacity | Up to 120 l/hour |
| Power Supply | 525V 3-Phase or 380V 3-Phase |
| Drive Motor | 5.5kW 525V – 8.5 Amp |
| Control Circuit | 24V DC |
| Dry Weight | 450 kg |
| Oil Capacity | 60 litres |
| Oil Type | Mineral Hydraulic Oil |
| Length | 1 410 mm |
| Width | 750 mm |
| Height | 1 020 mm |
| Mounting Options | Skids/Trailer/Rail Car |
| Optional Extra | Accelerator Tank |
| Dosing System |
