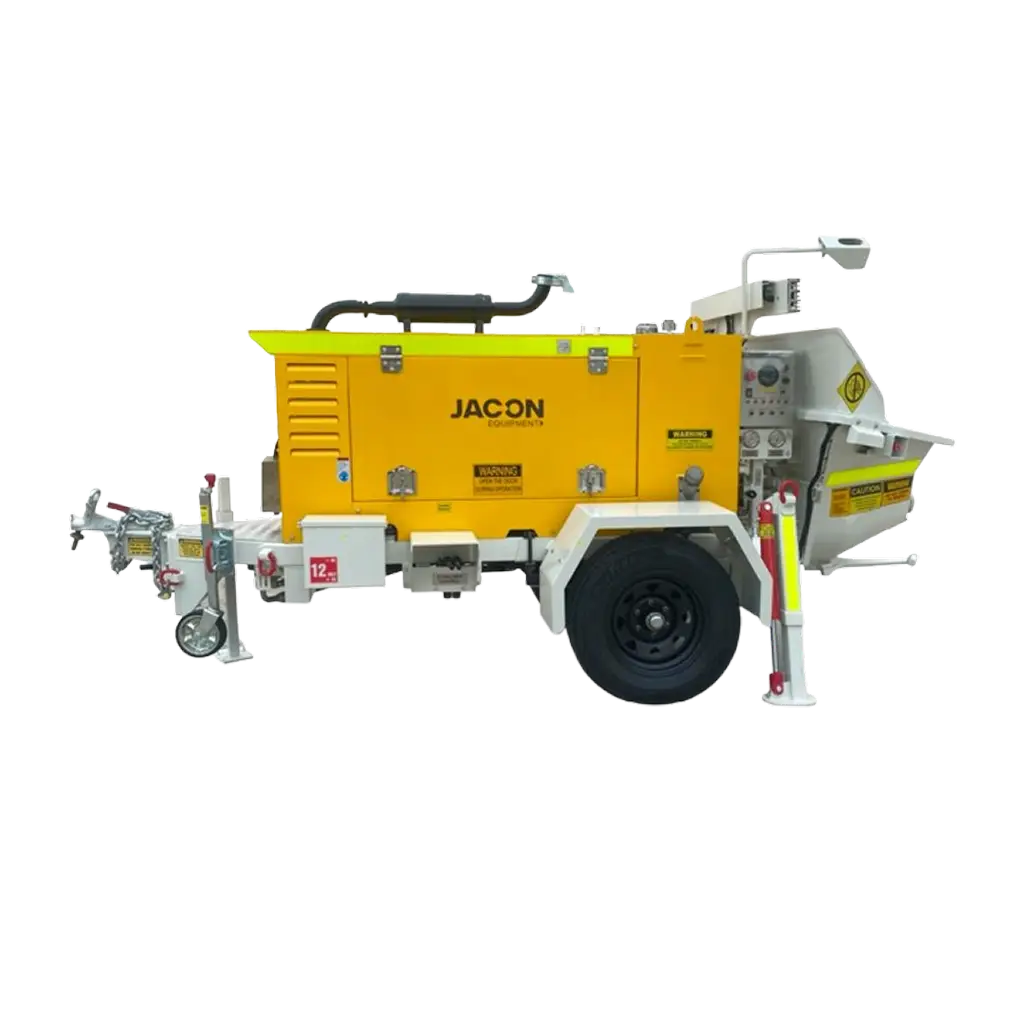

The Jacon S30 is a compact yet high-performing trailer-mounted concrete pump built for versatility across construction and mining projects. With an output of up to 30 m³/h, vertical reach of 80 m, and horizontal reach of 250 m, the S30 is ideal for slabs, blockfill, footings, shotcrete, driveways, and retaining walls. Thanks to its robust S-valve, the S30 handles harsh concrete mixes and low slumps with ease. The unit can also be shotcrete-conversion ready, expanding its use for earth stabilization, tunnel linings, and wall support. Built tough with hydraulic jacks, 4-channel remote control, and road compliance, the S30 is designed to be a dependable, profit-driving partner on any site.
If you’re looking for a compact concrete pump with high output and extreme versatility, the Jacon S30 stands out. Its trailer-mounted design enables easy towing and site setup, while the powerful Deutz engine and 250 bar hydraulic pressure allow it to operate in everything from urban builds to deep mine sites. It’s also shotcrete-ready, giving you the flexibility to use one machine for multiple concrete delivery applications. With high durability, low maintenance, and superior mix handling, the S30 is engineered for productivity.
Features & Benefits
High-Pressure Pumping System
Handles up to 30 m³/h with 70 bar line pressure
Capable of 80 m vertical and 250 m horizontal reach (independently)
S-Valve Technology
125mm–100mm swingtube transfer valve handles harsh and low-slump mixes reliably
Robust Hydraulic Performance
Max hydraulic pressure: 250 bar
Variable displacement piston pump
Hydraulic pilot system with electric override
Powerful & Efficient Drive
4-cylinder Deutz engine, 55 kW @ 2200 rpm
Built for efficient long-cycle pumping on tough mixes
Intuitive Remote Operation
4-channel remote control system
Hopper spotlight for low-light operation
Trailer-Mounted Durability
Heavy-duty suspension axle
Hydraulic jack legs, lifting lugs, and road-ready kit
Shotcrete Conversion Ready
Optional spraying kit, chemical pump with flow meter, and air blowout system
Suitable for earth retention, wall stabilization, and sprayed concrete
Technical Specifications
Output Capacity
0–30 m³/hour
Max Line Pressure
70 bar
Hydraulic Pressure
250 bar
Pump Type
Piston pump with 125 mm chromed cylinders (915 mm stroke)
Transfer Valve
125–100 mm swingtube S-valve, 100 mm outlet
Engine
4-cylinder Deutz, 55 kW @ 2200 rpm
Vertical Reach
Up to 80 m*
Horizontal Reach
Up to 250 m*
Aggregate Size
Up to 20 mm (per pumpable mix specs)
Control System
Hydraulic pilot with electric override
Remote Control
4-channel wireless system
Axle & Suspension
Heavy-duty trailer suspension
Stabilization
Hydraulic rear jack legs + lifting lugs
Pump Enhancements
Hopper remixer, air blowout system, spotlight
Optional Features
Spraying kit, chemical dosing with flow meter, blockfill kit, HP gurney, shotcrete kit
